Turbidity Sensor
Precise Turbidity Monitoring for Water Clarity Control
The iSOLV ATS500 Turbidity Sensor delivers reliable, real-time measurement of suspended particles and water clarity in treatment and process applications. It provides accurate turbidity measurement to support consistent water quality and process monitoring.

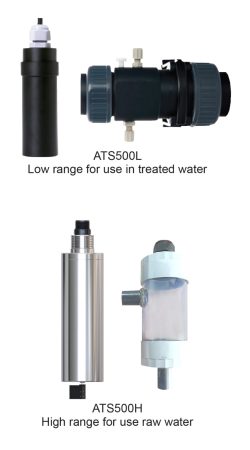

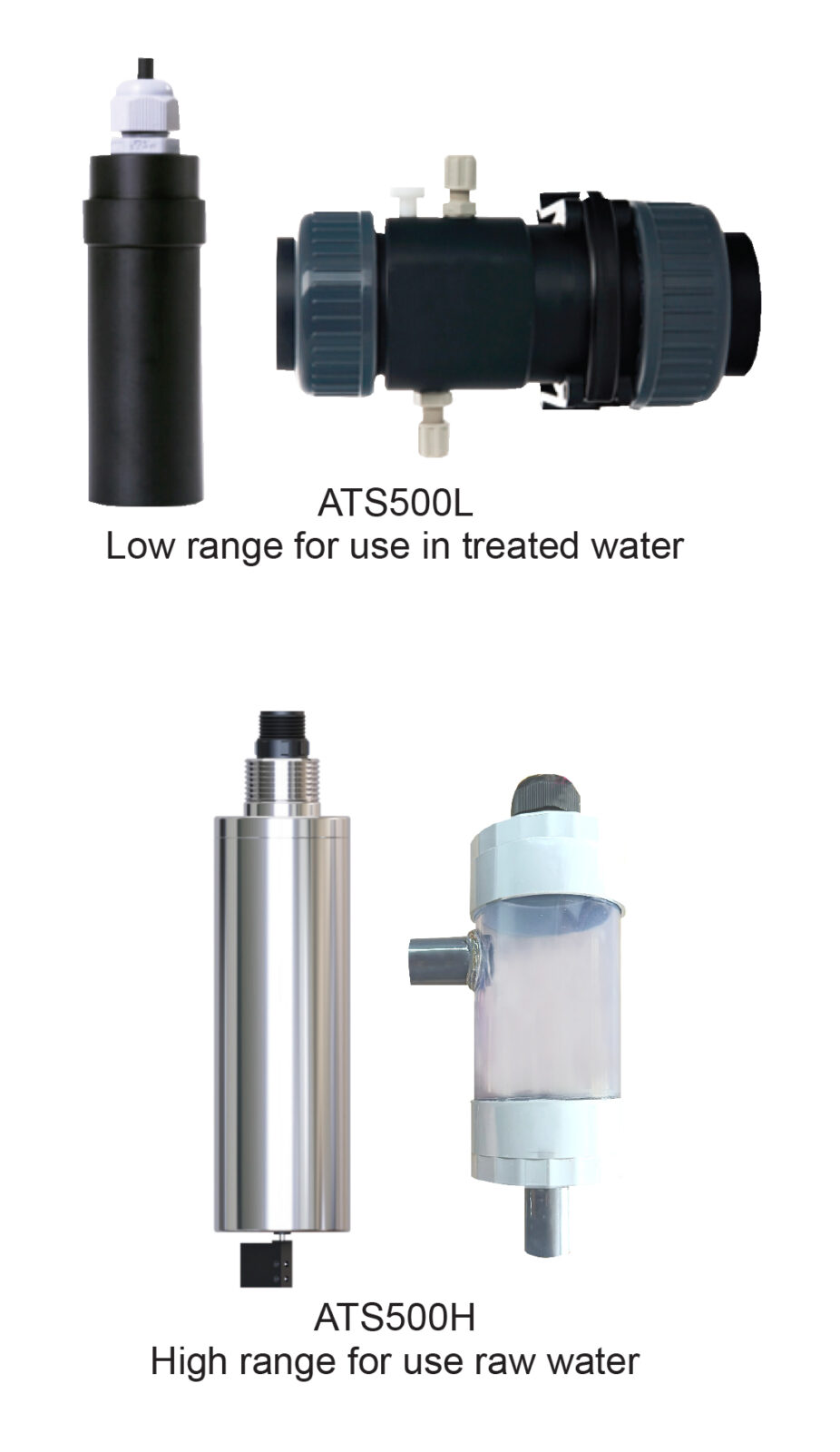

Designed for treated water and raw water applications, the ATS500 enables continuous monitoring across both low and high turbidity ranges. Its self-diagnostic functions help detect lens fouling, flow interruptions, and external light interference, ensuring dependable performance and reducing maintenance requirements. With robust IP68 protection and flexible installation options, the ATS500 is suitable for water treatment plants, industrial processes, and environmental monitoring systems.
- Range: -9999 / +9999. Turbidity Controller ATS500 allows the configuration of the minimum and the maximum value of the scale and decimal point position
- Measuring Unit: The user may select one of the proposed measuring units: %, NTU, FTU, mg/l, g/l, ppm, μS, mS, pH, mV, or edit any custom unit
- Display: The display shows the values of the measures and the messages which guide the user through set-up, configuration and during normal operation
- Keyboard: There are dedicated keys to directly access zero and sensitivity calibration as well as set point configuration
- Two Filters Software: The user can set two filters to obtain a stable reading and a faster response to the variations of the measurement in the process
- Operating Modes: Turbidity Controller ATS500 can operate in automatic, measure or simulated mode to facilitate start-up or maintenance
- Dual Analogue Outputs: Can be addressed to any input and programmable 0/4 – 20 mA on two points of the scale. They allow PID control or transmission of the measured values
- Two On/Off Regulators: Independent and addressable to any input with programmable set point on the scale
- PID Output: During PID control through the analogue output, the level of the actuation is displayed. The user can select an FM regulation (pulse frequency) or WM (pulse width) addressed to the assigned relay
- Logic Inputs: Two free voltage contacts can generate a hold or alarm condition
ATS500 Turbidity Analyzer is widely used in the following applications:
- Aquaculture
- Food and Beverage
- Chemical Industry
- Paper and Pulp
- Drinking Water
- Pharmaceutical
- Underground Water
- Electroplating
- Printing Industry
- Fertirrigation
- Swimming Pools
- Textile Industry
- Water Treatment
